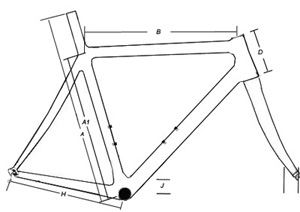

Evolve Geometry & Build Specifications
Size XS S M L XL
Seat Tube Length(center to top) cm 49 52 55 57 61
Seat Tube Length(center to center) 42 46 51 52 57
Wheel Size 700c 700c 700c 700c 700c
Seat Tube Angle (degrees) 75 74 73 73.5 73
Head Tube Angle (degrees) 72 72 72 72.5 73
BB Drop (mm) 62 70 70 70 70
Top Tube (cm) 51.8 53.3 55 56.6 59
Head Tube Length (mm) 120 130 135 160 190
Chainstay Length 405 405 405 405 405
Fork Rake 45 44 44 44 44
Evolve  Seat Mast Length (total ST length)cm 69 72 75 78 88
evolve
evolve_120









































Shimano Builds

Dura Ace 7900 Ultegra 6700
Headset FSA Integrated FSA Integrated
Handlebar FSA K-Force FSA Wing
Stem FSA OS-99  FSA OS-150
Bar Tape Velo Cork Velo Cork
Saddle Prologo Scratch Ti Selle Italia Carbonio
Seat Post Whisper ISP w/ Clamp Whisper ISP w/ Clamp
Front Derailleur Dura Ace 7900 Ultegra 6700
Rear Derailleur Dura Ace 7900 Ultegra 6700
Shifters Dura Ace 7900 Ultegra 6700
Double Crankset FSA SLK FSA Energy
Bottom Bracket FSA ME FSA ME
Cassette Dura Ace 7900 5700
Chain Dura Ace 7901 FSA
Brakes FSA SLK FSA Energy
Wheelset Easton EA70 Easton EA70
Tires Michelin Pro 4 Race  Michelin Pro 4 Race
Price $4000 $3200



SRAM Builds

SRAM NEW Red SRAM Force
Headset FSA Integrated FSA Integrated
Handlebar FSA K-Force FSA Wing
Stem FSA OS-99  FSA SLK 31.8
Bar Tape Velo Cork Velo Cork
Saddle Selle Italia SLR Selle Italia Flite GF
Seat Post Whisper ISP w/ Clamp Whisper ISP w/ Clamp
Front Derailleur RED Force
Rear Derailleur RED Force
Shifters RED Force
Double Crankset RED Force
Bottom Bracket RED GXP Ceramic GXP BB
Cassette SRAM 1090 10s SRAM 1070 10s
Chain SRAM 1090R 10s SRAM 1071 10s
Brakes RED Force
Wheelset Easton EA70 Easton EA70
Tires Michelin Pro 4 Race Michelin Pro 4 Race
Price $4100 $3300

Pricing and specifications subject to change and availability.
